Nissan Navara IV King Cab 2.3 dCi (160 Hp) AWD technical specifications and fuel economy
Nissan Navara IV King Cab 2.3 dCi (160 Hp) AWD has a combined fuel consumption of 6.4 l/100 km | 36.8 mpg US | 44.1 mpg UK urban fuel consumption of 7.0 l/100 km | 33.6 mpg US | 40.4 mpg UK extra urban fuel consumption of 6.1 l/100 km | 38.6 mpg US | 46.3 mpg UK Nissan Navara IV King Cab 2.3 dCi (160 Hp) AWD accelerates from 0 to 100 km/h in 12 sec. The maximum speed is 172 km/h | 107 mph.
Nissan Navara IV King Cab 2.3 dCi (160 Hp) AWD Technical information
|
|
General information
|
|
|---|---|
| Brand : | Nissan |
| Model : | Navara |
| Generation : | Navara IV King Cab |
| Engine / modification : | 2.3 dCi (160 Hp) AWD |
| Production start : | 2015 year |
| Production end : | |
| Coupe type : | Pick-up |
| Num. of Doors : | 4 |
| Num. of seats : | 4 |
Fuel economy (consumption)
|
|
| Fuel consumption / economy - urban : | 7.0 l/100 km | 33.6 mpg US | 40.4 mpg UK |
| Fuel consumption / economy - extra urban : | 6.1 l/100 km | 38.6 mpg US | 46.3 mpg UK |
| Fuel consumption / economy - combined : | 6.4 l/100 km | 36.8 mpg US | 44.1 mpg UK |
| Fuel Type : | Diesel |
| Fuel tank volume : | 80 l | 21.1 US gallons | 17.6 UK gallons |
| Emission standard : | EURO Vb |
| CO2 emissions : | 169 g/km |
Performance
|
|
| Power : | 160 hp | 118 kW |
| Max power in : | 3750 rpm. |
| Maximum speed : | 172 km/h | 107 mph |
| Acceleration from 0 to 100 km/h : | 12 sec |
| Torque : | 403 Nm/1500-2500 rpm. |
Engine
|
|
| Engine position : | Front, transverse |
| Engine displacement : | 2299 cm3 |
| Fuel System : | Diesel Commonrail |
| Aspiration / Turbine : | Turbo / Intercooler (Turbocharging / Intercooler) |
| Position of cylinders : | Inline |
| Valvetrain : | DOHC |
| Number of cylinders : | 4 |
| Number of valves per cylinder : | 4 |
| Compression ratio : | 15.4 |
| Piston Stroke : | 101.3 mm |
| Cylinder Bore : | 85 mm |
Transmission
|
|
| Wheel Drive : | All wheel drive (4x4) |
| Number of Gears (manual transmission) : | 6 |
Chassis
|
|
| Length : | 5255 mm | 206.9 in |
| Width : | 1850 mm | 72.8 in |
| Width including mirrors : | 2085 mm | 82.1 in |
| Height : | 1780-1790 mm |
| Wheelbase : | 3150 mm | 124.0 in |
| Front track : | 1570 mm | 61.8 in |
| Rear (Back) track : | 1570 mm | 61.8 in |
| Ride height(clearance) : | 208-223 mm |
| Approach angle : | 29.4 ° |
| Departure angle : | 24.6 ° |
| Ramp angle : | 22 ° |
| Front overhang : | 870 mm |
| Rear overhang : | 1235 mm |
| Wading depth : | 600 mm |
| Front suspension : | Double wishbone |
| Rear suspension : | The spring |
| Max weight : | 3010 kg | 6636 lbs |
| Front brakes : | Ventilated discs |
| Rear brakes : | Drum |
| Kerb Weight : | 1824 kg | 4021 lbs |
| ABS : | yes |
| Steering type : | Steering rack and pinion |
| Power steering : | Electric Steering |
| Minimum turning circle (turning diameter) : | 11.8 m |
| Permitted trailer load with brakes (12%) : | 3500 kg |
| Permitted trailer load without brakes : | 750 kg |
| Permitted towbar download : | 140 kg |
Tyres / Wheels
|
|
| Tire size : | 255/70 R16; 255/60 R18 |
| Wheel rims size : | 7J x 16; 7J x 18 |
| Compare this car with other cars | |
Back to Nissan Navara generations
Reviews score
★
0.0
/0 reviews
Appearance
0.0
Comfort
0.0
Performance
0.0
Durability
0.0
Maintenance cost
0.0
Appearance
0
Comment (not required)
Comfort
0
Comment (not required)
Performance
0
Comment (not required)
Durability
0
Comment(not required) - common problems
Maintenance cost
0
Comment (not required)
Additional comment(not required)
Drivers photos

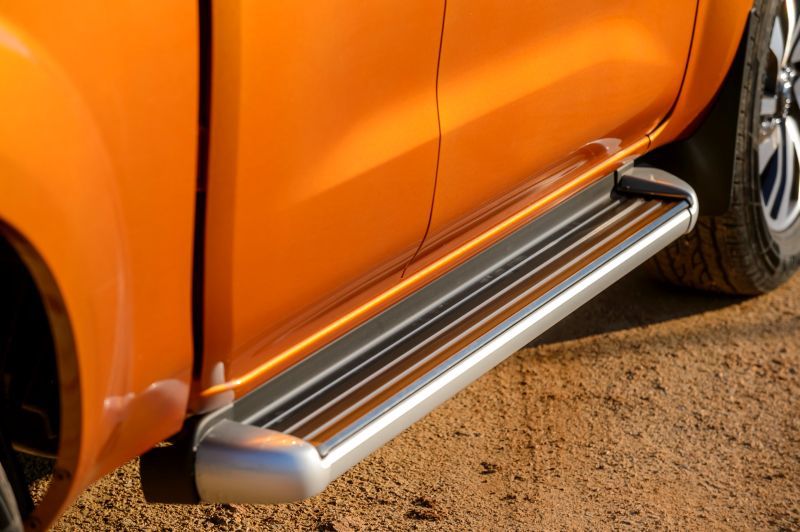

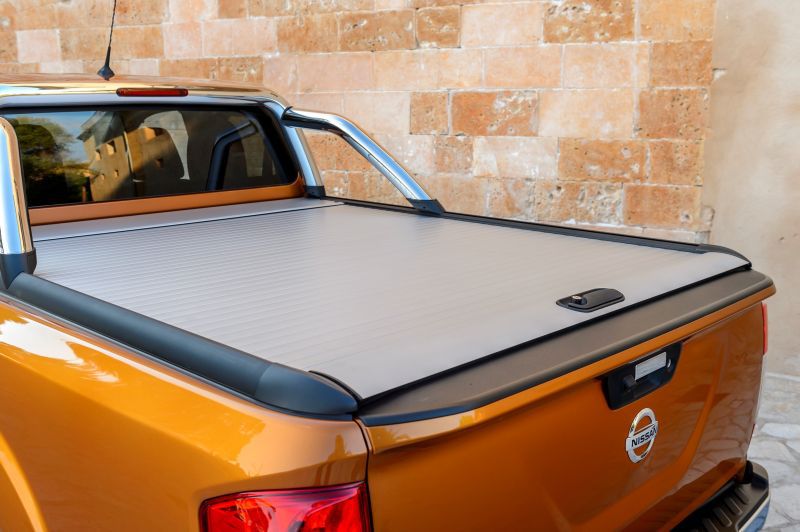

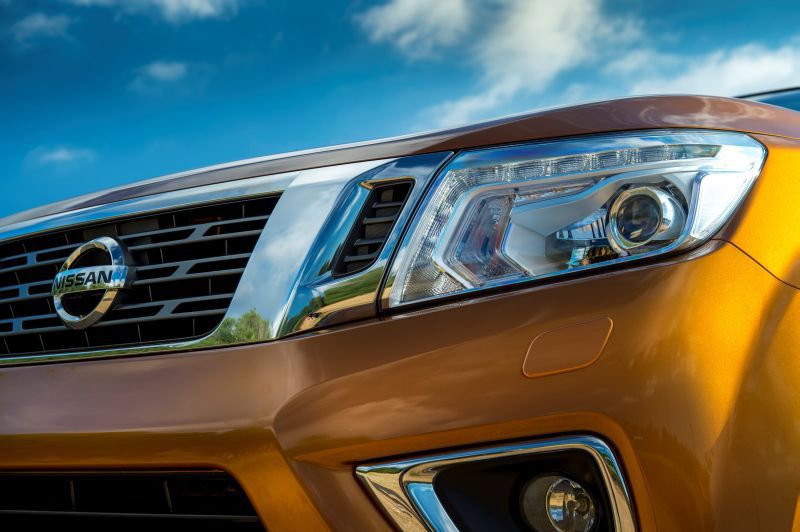

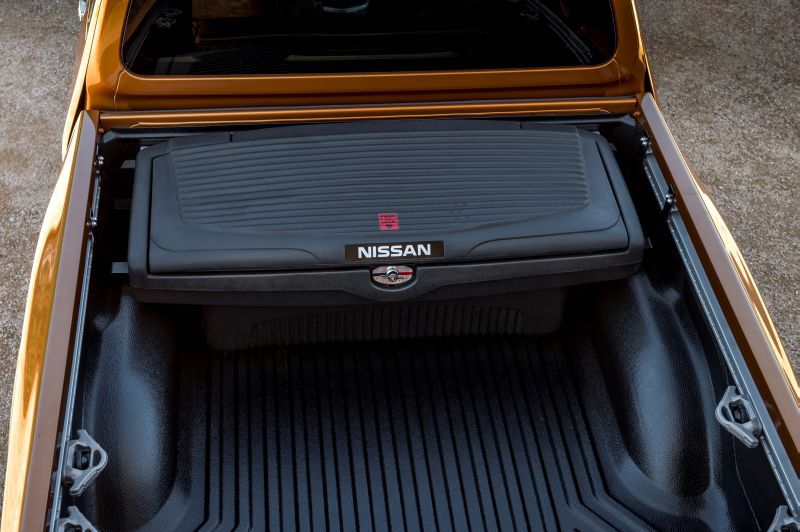

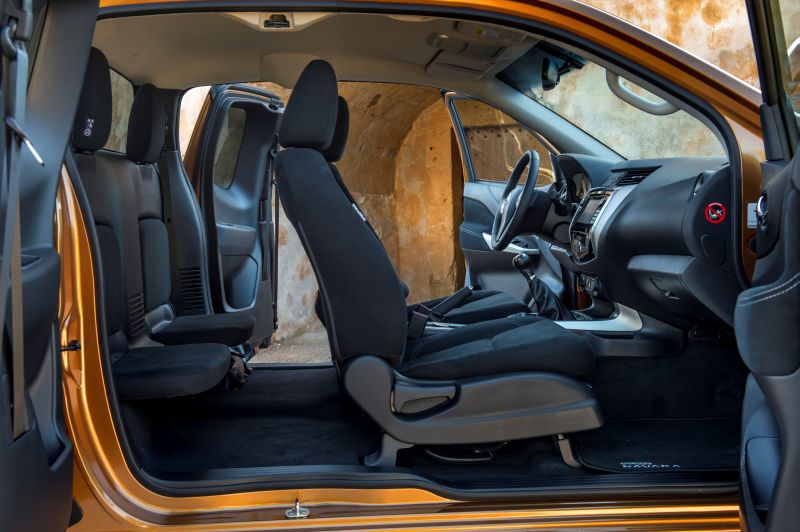

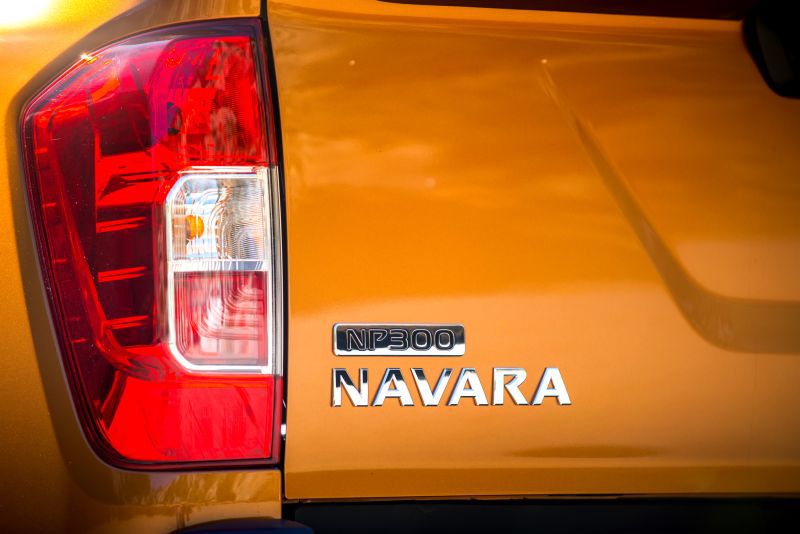

Nissan Navara IV King Cab 2.3 dCi (160 Hp) AWD Photo gallery
