Toyota Proace 2.0 D4-D (163 Hp) L1H1 technical specifications and fuel economy
Toyota Proace 2.0 D4-D (163 Hp) L1H1 has a combined fuel consumption of 6.4 l/100 km | 36.8 mpg US | 44.1 mpg UK urban fuel consumption of 7.6 l/100 km | 30.9 mpg US | 37.2 mpg UK extra urban fuel consumption of 5.8 l/100 km | 40.6 mpg US | 48.7 mpg UK Toyota Proace 2.0 D4-D (163 Hp) L1H1 accelerates from 0 to 100 km/h in 10.5 sec. The maximum speed is 170 km/h | 106 mph.
Toyota Proace 2.0 D4-D (163 Hp) L1H1 Technical information
|
|
General information
|
|
|---|---|
| Brand : | Toyota |
| Model : | Proace |
| Generation : | Proace |
| Engine / modification : | 2.0 D4-D (163 Hp) L1H1 |
| Production start : | 2013 year |
| Production end : | 2016 year |
| Coupe type : | Minivan |
| Num. of Doors : | 5 |
| Num. of seats : | 3 |
Fuel economy (consumption)
|
|
| Fuel consumption / economy - urban : | 7.6 l/100 km | 30.9 mpg US | 37.2 mpg UK |
| Fuel consumption / economy - extra urban : | 5.8 l/100 km | 40.6 mpg US | 48.7 mpg UK |
| Fuel consumption / economy - combined : | 6.4 l/100 km | 36.8 mpg US | 44.1 mpg UK |
| Fuel Type : | Diesel |
| Fuel tank volume : | 80 l | 21.1 US gallons | 17.6 UK gallons |
| Emission standard : | EURO V |
| CO2 emissions : | 168 g/km |
Performance
|
|
| Power : | 163 hp | 120 kW |
| Max power in : | 3750 rpm. |
| Maximum speed : | 170 km/h | 106 mph |
| Acceleration from 0 to 100 km/h : | 10.5 sec |
| Torque : | 340 Nm/2000 rpm. |
Engine
|
|
| Engine position : | Front, transverse |
| Engine displacement : | 1997 cm3 |
| Fuel System : | Diesel Commonrail |
| Aspiration / Turbine : | Turbo / Intercooler (Turbocharging / Intercooler) |
| Position of cylinders : | Inline |
| Valvetrain : | DOHC |
| Number of cylinders : | 4 |
| Compression ratio : | 16 |
| Piston Stroke : | 88 mm |
| Cylinder Bore : | 85 mm |
Transmission
|
|
| Wheel Drive : | Front wheel drive |
| Number of Gears (manual transmission) : | 6 |
Chassis
|
|
| Length : | 4813 mm | 189.5 in |
| Width : | 1895 mm | 74.6 in |
| Height : | 1980 mm | 78.0 in |
| Wheelbase : | 3000 mm | 118.1 in |
| Front track : | 1570 mm | 61.8 in |
| Rear (Back) track : | 1604 mm | 63.1 in |
| Front suspension : | Double wishbone |
| Rear suspension : | Semi-independent, spring |
| Max weight : | 2943 kg | 6488 lbs |
| Front brakes : | Ventilated discs |
| Rear brakes : | Disc |
| Kerb Weight : | 1806-1914 kg |
| ABS : | yes |
| Steering type : | Steering rack and pinion |
| Power steering : | Electric Steering |
| Max. roof load : | 170 kg |
| Minimum turning circle (turning diameter) : | 12.2 m |
| Permitted trailer load with brakes (12%) : | 2000 kg |
| Permitted trailer load without brakes : | 750 kg |
| Permitted towbar download : | 80 kg |
Tyres / Wheels
|
|
| Tire size : | 215/60 R16 |
| Wheel rims size : | 7J x 16 |
| Compare this car with other cars | |
Back to Toyota Proace generations
Reviews score
★
0.0
/0 reviews
Appearance
0.0
Comfort
0.0
Performance
0.0
Durability
0.0
Maintenance cost
0.0
Appearance
0
Comment (not required)
Comfort
0
Comment (not required)
Performance
0
Comment (not required)
Durability
0
Comment(not required) - common problems
Maintenance cost
0
Comment (not required)
Additional comment(not required)
Drivers photos

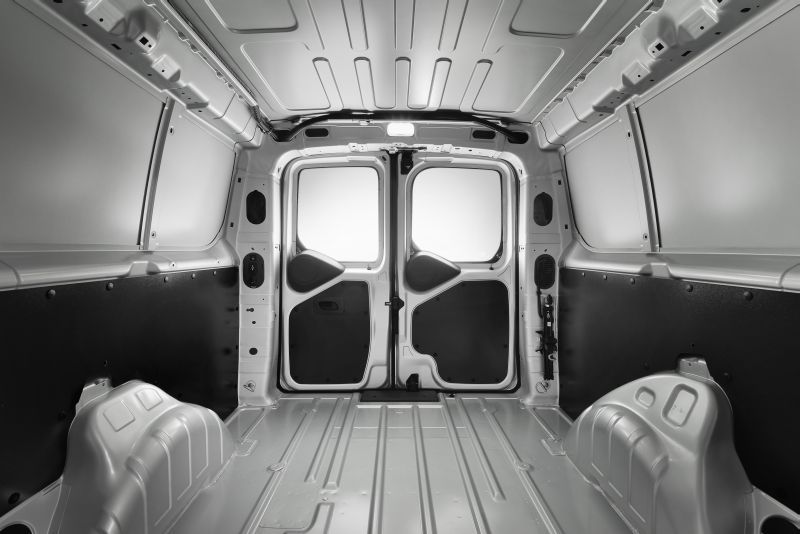

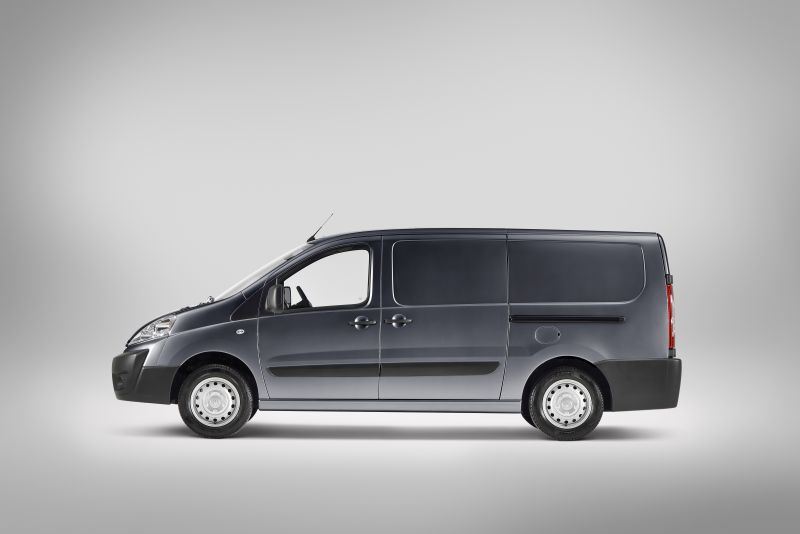

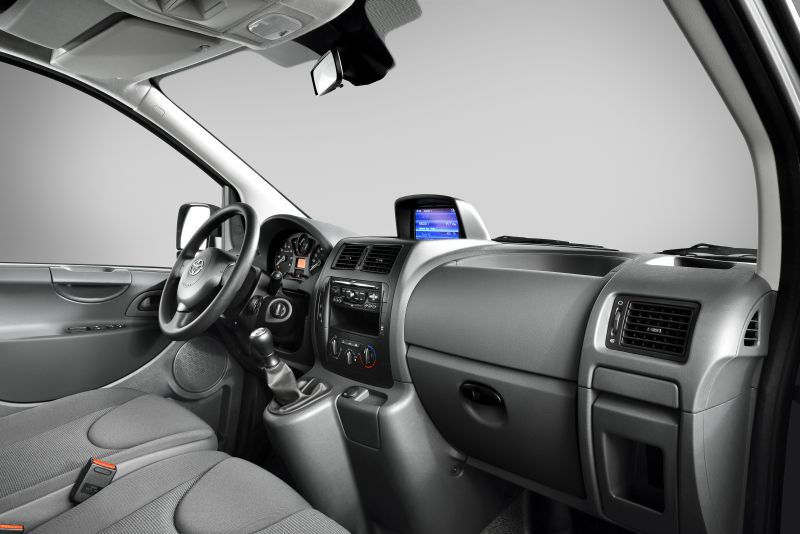

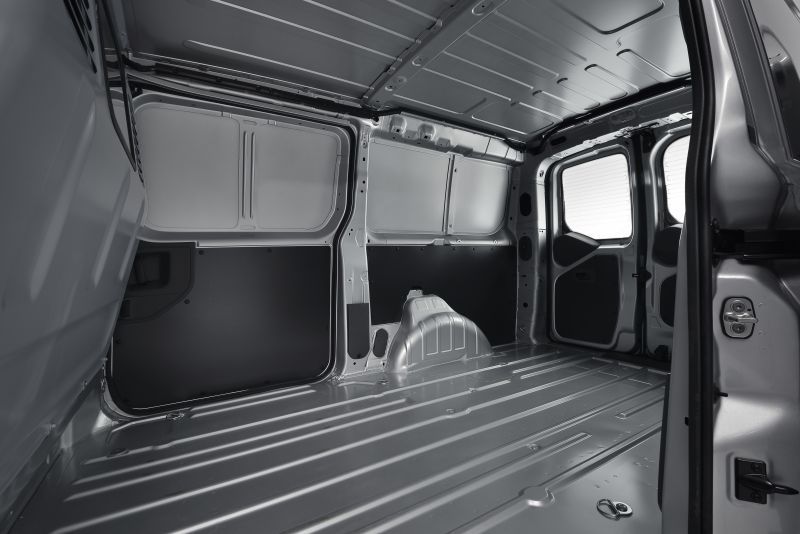

Toyota Proace 2.0 D4-D (163 Hp) L1H1 Photo gallery
