UAZ 469B 2.4 (73 Hp) 4x4 technical specifications and fuel economy
UAZ 469B 2.4 (73 Hp) 4x4 has a combined fuel consumption of 12 l/100 km | 19.6 mpg US | 23.5 mpg UK
UAZ 469B 2.4 (73 Hp) 4x4 Technical information
|
|
General information
|
|
|---|---|
| Brand : | UAZ |
| Model : | 469 |
| Generation : | 469B |
| Engine / modification : | 2.4 (73 Hp) 4x4 |
| Production start : | 1973 year |
| Production end : | 1985 year |
| Coupe type : | Off-road vehicle |
| Num. of Doors : | 5 |
| Num. of seats : | 7 |
Fuel economy (consumption)
|
|
| Fuel consumption / economy - urban : | |
| Fuel consumption / economy - extra urban : | |
| Fuel consumption / economy - combined : | 12 l/100 km | 19.6 mpg US | 23.5 mpg UK |
| Fuel Type : | Petrol (Gasoline) |
Performance
|
|
| Power : | 73 hp | 54 kW |
| Max power in : | 4000 rpm. |
| Maximum speed : | 100 km/h | 62 mph |
| Acceleration from 0 to 100 km/h : | |
| Torque : | 163 Nm @ 2200-2500 rpm. |
Engine
|
|
| Model Engine : | ZMZ-451MI |
| Engine position : | Front, longitudinal |
| Engine displacement : | 2445 cm3 |
| Fuel System : | Carburettor |
| Position of cylinders : | Inline |
| Valvetrain : | OHV |
| Number of cylinders : | 4 |
| Number of valves per cylinder : | 2 |
| Compression ratio : | 6.7 |
| Piston Stroke : | 92 mm |
| Cylinder Bore : | 92 mm |
Transmission
|
|
| Wheel Drive : | All wheel drive (4x4) |
| Number of Gears (manual transmission) : | 4 |
Chassis
|
|
| Length : | 4025 mm | 158.5 in |
| Width : | 1785 mm | 70.3 in |
| Height : | 2015 mm | 79.3 in |
| Wheelbase : | 2380 mm | 93.7 in |
| Front track : | 1442 mm | 56.8 in |
| Rear (Back) track : | 1442 mm | 56.8 in |
| Ride height(clearance) : | 220 mm | 8.7 in |
| Approach angle : | 50 ° |
| Departure angle : | 40 ° |
| Climb angle : | 31 ° |
| Front overhang : | 680 mm |
| Rear overhang : | 965 mm |
| Wading depth : | 700 mm |
| Max weight : | 2290 kg | 5049 lbs |
| Front brakes : | Drum |
| Rear brakes : | Drum |
| Kerb Weight : | 1540 kg | 3395 lbs |
| Steering type : | Cone worm with recirculation balls |
| Minimum turning circle (turning diameter) : | 13 m |
| Permitted trailer load without brakes : | 850 kg |
Tyres / Wheels
|
|
| Tire size : | 215/90 R15 |
| Wheel rims size : | R15 |
| Compare this car with other cars | |
Back to UAZ 469 generations
Reviews score
★
0.0
/0 reviews
Appearance
0.0
Comfort
0.0
Performance
0.0
Durability
0.0
Maintenance cost
0.0
Appearance
0
Comment (not required)
Comfort
0
Comment (not required)
Performance
0
Comment (not required)
Durability
0
Comment(not required) - common problems
Maintenance cost
0
Comment (not required)
Additional comment(not required)
Drivers photos

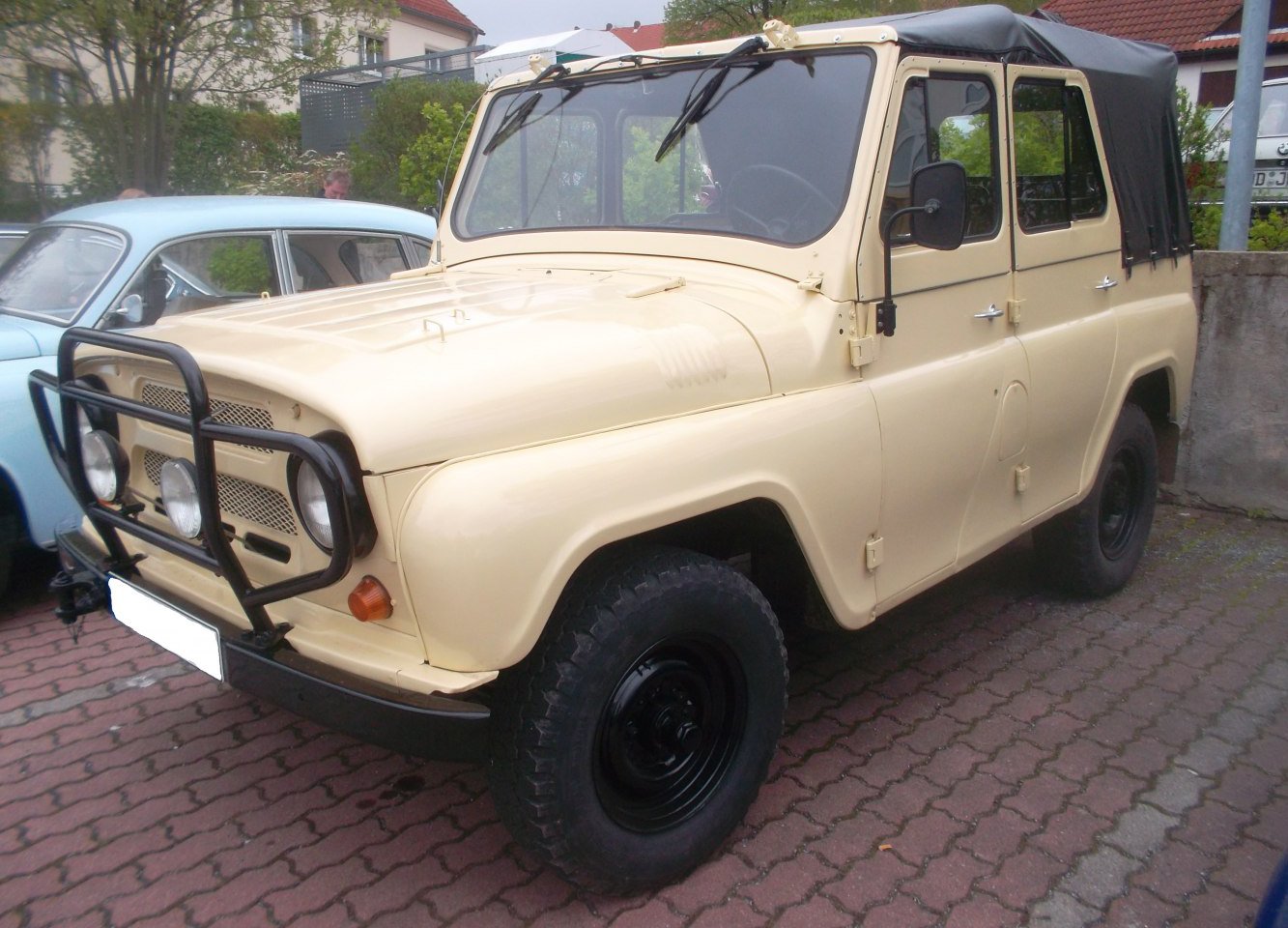

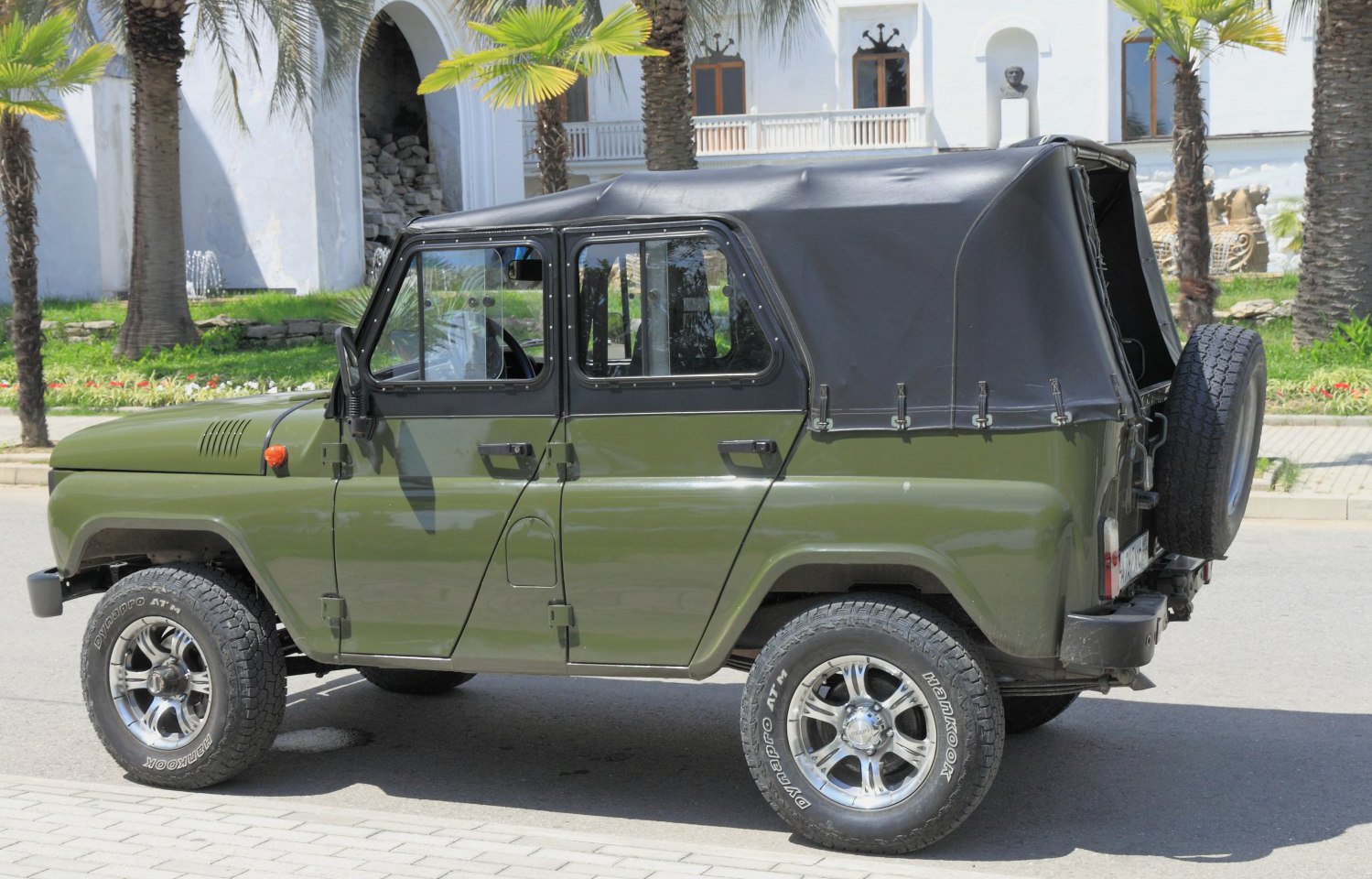

UAZ 469B 2.4 (73 Hp) 4x4 Photo gallery
