UAZ 3163 Patriot 2.3D (116 Hp) technical specifications and fuel economy
UAZ 3163 Patriot 2.3D (116 Hp) has a combined fuel consumption of 9.5 l/100 km | 24.8 mpg US | 29.7 mpg UK urban fuel consumption of 12.5 l/100 km | 18.8 mpg US | 22.6 mpg UK
UAZ 3163 Patriot 2.3D (116 Hp) Technical information
|
|
General information
|
|
|---|---|
| Brand : | UAZ |
| Model : | Patriot |
| Generation : | 3163 Patriot |
| Engine / modification : | 2.3D (116 Hp) |
| Production start : | 2005 year |
| Production end : | |
| Coupe type : | Off-road vehicle |
| Num. of Doors : | 5 |
| Num. of seats : | 5 |
Fuel economy (consumption)
|
|
| Fuel consumption / economy - urban : | 12.5 l/100 km | 18.8 mpg US | 22.6 mpg UK |
| Fuel consumption / economy - extra urban : | |
| Fuel consumption / economy - combined : | 9.5 l/100 km | 24.8 mpg US | 29.7 mpg UK |
| Fuel Type : | Diesel |
| Fuel tank volume : | 87 l | 23.0 US gallons | 19.1 UK gallons |
Performance
|
|
| Power : | 116 hp | 85 kW |
| Max power in : | 3900 rpm. |
| Maximum speed : | 135 km/h | 84 mph |
| Acceleration from 0 to 100 km/h : | |
| Torque : | 270 Nm/2200 rpm. |
Engine
|
|
| Model Engine : | Iveco F1A |
| Engine position : | Front, longitudinal |
| Fuel System : | Diesel - Standard diesel injection (SDI) |
| Aspiration / Turbine : | Turbocharging |
| Position of cylinders : | Inline |
| Valvetrain : | DOHC |
| Number of cylinders : | 4 |
Transmission
|
|
| Wheel Drive : | Part time 4x4 |
| Number of Gears (automatic transmission) : | - |
| Number of Gears (manual transmission) : | 5 |
Chassis
|
|
| Length : | 4647 mm | 183.0 in |
| Width : | 2080 mm | 81.9 in |
| Height : | 2000 mm | 78.7 in |
| Wheelbase : | 2760 mm | 108.7 in |
| Front track : | 1600 mm | 63.0 in |
| Rear (Back) track : | 1600 mm | 63.0 in |
| Front suspension : | Trailing |
| Rear suspension : | The spring |
| Max weight : | 2770 kg | 6107 lbs |
| Front brakes : | Ventilated discs |
| Rear brakes : | Drum |
| Kerb Weight : | 2170 kg | 4784 lbs |
| Compare this car with other cars | |
Back to UAZ Patriot generations
Reviews score
★
0.0
/0 reviews
Appearance
0.0
Comfort
0.0
Performance
0.0
Durability
0.0
Maintenance cost
0.0
Appearance
0
Comment (not required)
Comfort
0
Comment (not required)
Performance
0
Comment (not required)
Durability
0
Comment(not required) - common problems
Maintenance cost
0
Comment (not required)
Additional comment(not required)
Drivers photos

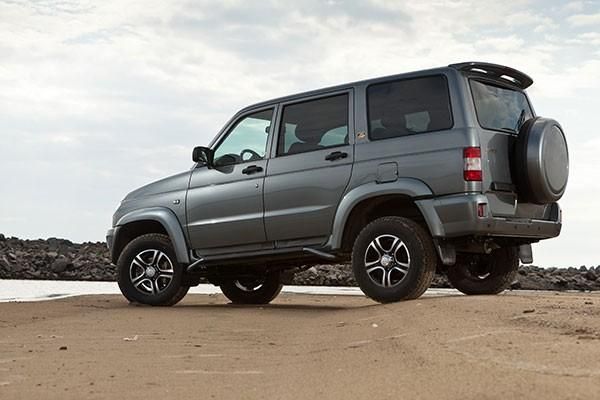

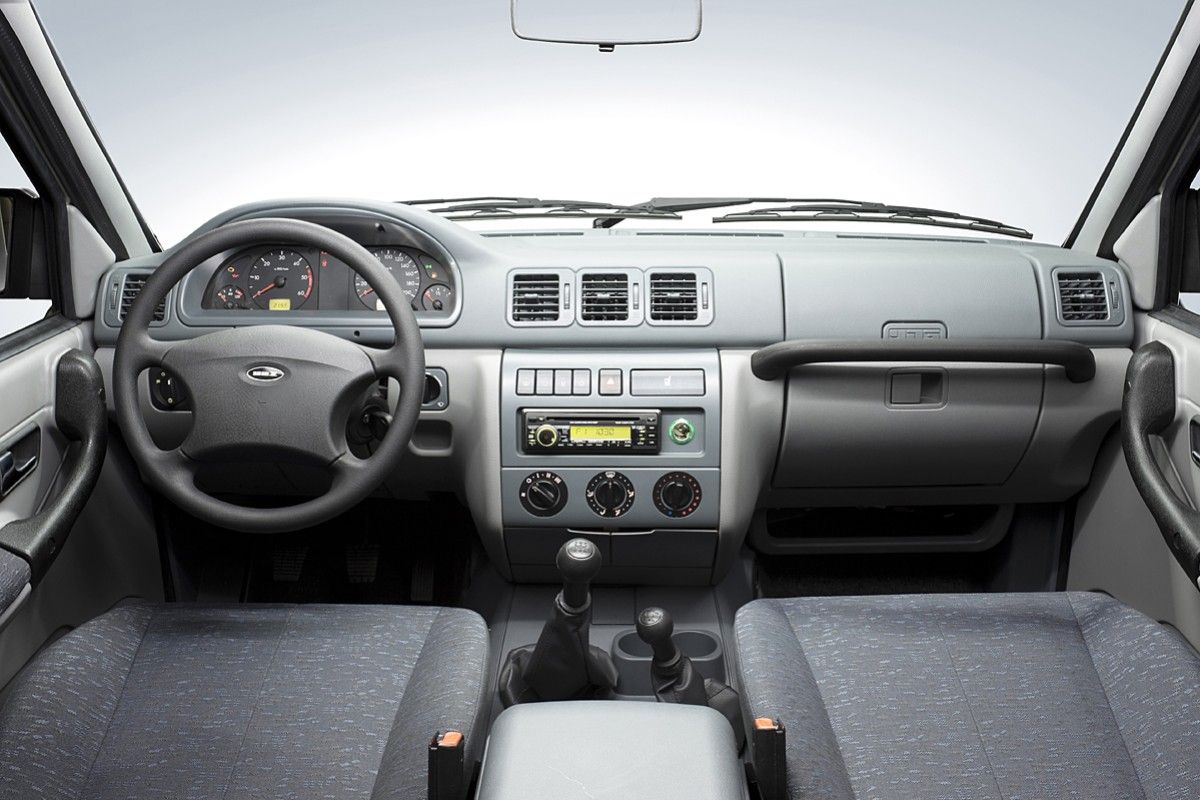

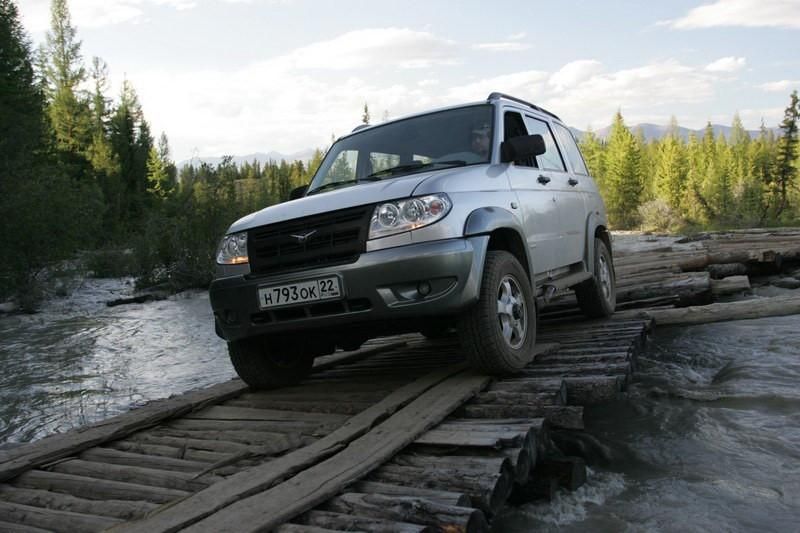

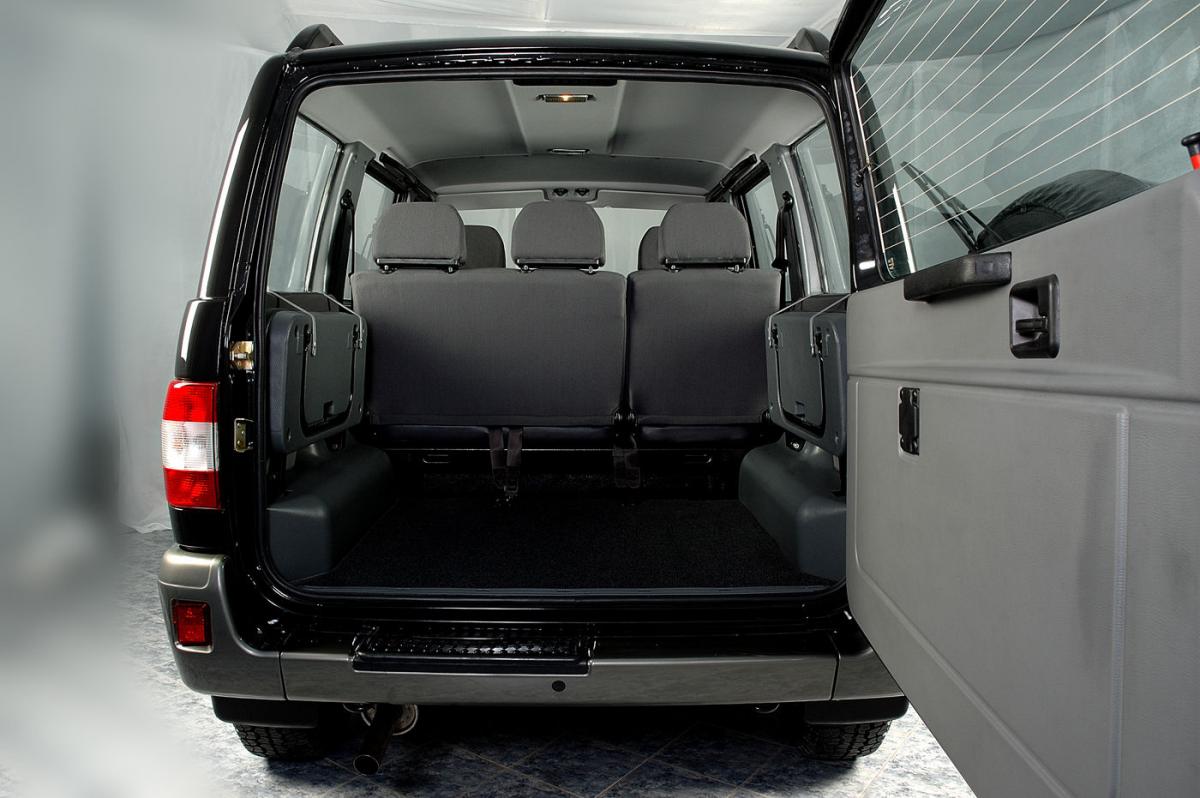

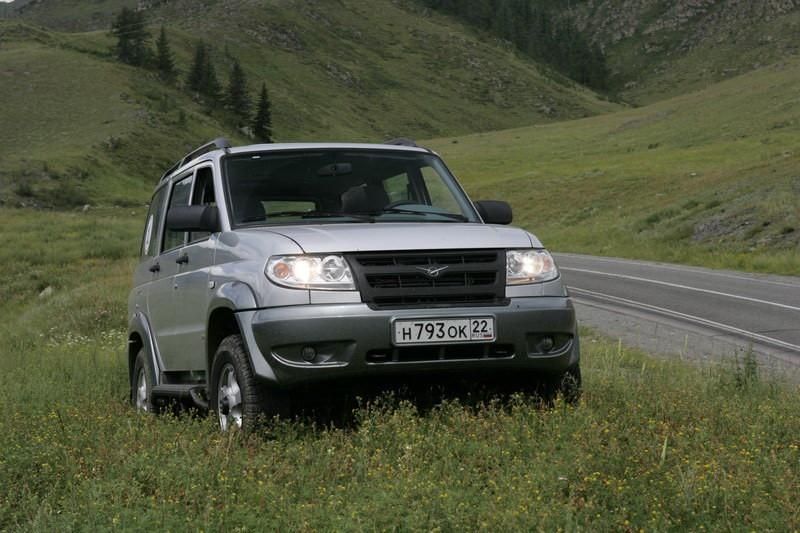

UAZ 3163 Patriot 2.3D (116 Hp) Photo gallery
