Volkswagen Beetle Convertible (A5, facelift 2016) 2.0 TDI (150 Hp) technical specifications and fuel economy
Volkswagen Beetle Convertible (A5, facelift 2016) 2.0 TDI (150 Hp) has a combined fuel consumption of 4.5-4.6 l/100 km urban fuel consumption of 5.3-5.4 l/100 km extra urban fuel consumption of 4.1-4.2 l/100 km Volkswagen Beetle Convertible (A5, facelift 2016) 2.0 TDI (150 Hp) accelerates from 0 to 100 km/h in 9.3 sec. The maximum speed is 200 km/h | 124 mph.
Volkswagen Beetle Convertible (A5, facelift 2016) 2.0 TDI (150 Hp) Technical information
|
|
General information
|
|
|---|---|
| Brand : | Volkswagen |
| Model : | Beetle |
| Generation : | Beetle Convertible (A5, facelift 2016) |
| Engine / modification : | 2.0 TDI (150 Hp) |
| Production start : | 2016 year |
| Production end : | 2018 year |
| Coupe type : | Cabriolet |
| Num. of Doors : | 2 |
| Num. of seats : | 4 |
Fuel economy (consumption)
|
|
| Fuel consumption / economy - urban : | 5.3-5.4 l/100 km |
| Fuel consumption / economy - extra urban : | 4.1-4.2 l/100 km |
| Fuel consumption / economy - combined : | 4.5-4.6 l/100 km |
| Fuel Type : | Diesel |
| Fuel tank volume : | 55 l | 14.5 US gallons | 12.1 UK gallons |
| Emission standard : | Euro 6 |
| CO2 emissions : | 118-120 g/km |
Performance
|
|
| Power : | 150 hp | 110 kW |
| Max power in : | 3500-4000 rpm. |
| Maximum speed : | 200 km/h | 124 mph |
| Acceleration from 0 to 100 km/h : | 9.3 sec |
| Torque : | 340 Nm @ 1750-3000 rpm. |
Engine
|
|
| Model Engine : | CUUB, CVCA, DELA, DGMA |
| Engine position : | Front, transverse |
| Engine displacement : | 1968 cm3 |
| Engine oil capacity : | 4.7-5.5 l |
| Fuel System : | Diesel Commonrail |
| Aspiration / Turbine : | Turbo / Intercooler (Turbocharging / Intercooler) |
| Position of cylinders : | Inline |
| Number of cylinders : | 4 |
| Number of valves per cylinder : | 4 |
| Compression ratio : | 16.2 |
| Piston Stroke : | 95.5 mm |
| Cylinder Bore : | 81 mm |
Transmission
|
|
| Wheel Drive : | Front wheel drive |
| Number of Gears (manual transmission) : | 6 |
Chassis
|
|
| Length : | 4288 mm | 168.8 in |
| Width : | 1825 mm | 71.9 in |
| Width including mirrors : | 2021 mm | 79.6 in |
| Height : | 1473 mm | 58.0 in |
| Wheelbase : | 2538 mm | 99.9 in |
| Front track : | 1570-1580 mm |
| Rear (Back) track : | 1569-1579 mm |
| Ride height(clearance) : | 136 mm | 5.4 in |
| Minimum volume of Luggage (trunk) : | 225 l |
| Max weight : | 1900 kg | 4189 lbs |
| Front brakes : | Ventilated discs |
| Rear brakes : | Disc |
| Kerb Weight : | 1430 kg | 3153 lbs |
| ABS : | yes |
| Steering type : | Steering rack and pinion |
| Power steering : | Electric Steering |
| Minimum turning circle (turning diameter) : | 10.8 m |
Tyres / Wheels
|
|
| Tire size : | 215/60 R16; 215/55 R17 |
| Wheel rims size : | 6.5J x 16; 7J x 17 |
| Compare this car with other cars | |
Back to Volkswagen Beetle generations
Reviews score
★
0.0
/0 reviews
Appearance
0.0
Comfort
0.0
Performance
0.0
Durability
0.0
Maintenance cost
0.0
Appearance
0
Comment (not required)
Comfort
0
Comment (not required)
Performance
0
Comment (not required)
Durability
0
Comment(not required) - common problems
Maintenance cost
0
Comment (not required)
Additional comment(not required)
Drivers photos

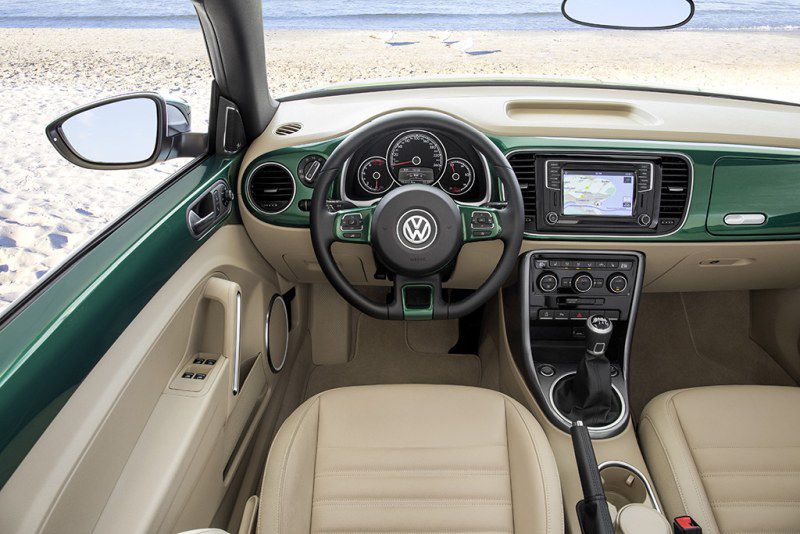

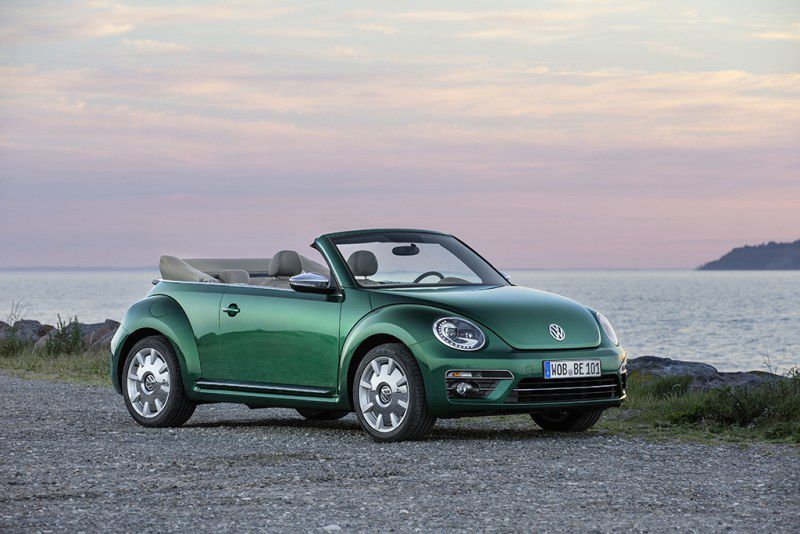

Volkswagen Beetle Convertible (A5, facelift 2016) 2.0 TDI (150 Hp) Photo gallery
