Volkswagen Multivan (T5) 2.5 TDI (130 Hp) technical specifications and fuel economy
Volkswagen Multivan (T5) 2.5 TDI (130 Hp) accelerates from 0 to 100 km/h in 15.3 sec. The maximum speed is 168 km/h | 104 mph.
Volkswagen Multivan (T5) 2.5 TDI (130 Hp) Technical information
|
|
General information
|
|
|---|---|
| Brand : | Volkswagen |
| Model : | Multivan |
| Generation : | Multivan (T5) |
| Engine / modification : | 2.5 TDI (130 Hp) |
| Production start : | 2003 year |
| Production end : | 2006 year |
| Coupe type : | Minivan |
| Powertrain Architecture : | Internal Combustion engine |
| Num. of Doors : | 5 |
| Num. of seats : | 7 |
Fuel economy (consumption)
|
|
| Fuel consumption / economy - urban : | |
| Fuel consumption / economy - extra urban : | |
| Fuel consumption / economy - combined : | |
| Fuel Type : | Diesel |
| Fuel tank volume : | 80 l | 21.1 US gallons | 17.6 UK gallons |
| Emission standard : | Euro 3 |
Performance
|
|
| Power : | 130 hp | 96 kW |
| Max power in : | 3500 rpm. |
| Maximum speed : | 168 km/h | 104 mph |
| Acceleration from 0 to 100 km/h : | 15.3 sec |
| Torque : | 340 Nm @ 2000-2300 rpm. |
Engine
|
|
| Model Engine : | EA153 / AXD |
| Engine position : | Front, transverse |
| Engine displacement : | 2460 cm3 |
| Engine oil capacity : | 7.4 l |
| Coolant : | 7.1 l |
| Fuel System : | Pump-nozzle (Unit Injector) |
| Position of cylinders : | Inline |
| Valvetrain : | SOHC |
| Number of cylinders : | 5 |
| Number of valves per cylinder : | 2 |
| Compression ratio : | 18 |
| Piston Stroke : | 95.5 mm |
| Cylinder Bore : | 81 mm |
Transmission
|
|
| Wheel Drive : | Front wheel drive |
Chassis
|
|
| Length : | 4890 mm | 192.5 in |
| Width : | 1904 mm | 75.0 in |
| Width including mirrors : | 2283 mm | 89.9 in |
| Height : | 1944 mm | 76.5 in |
| Wheelbase : | 3000 mm | 118.1 in |
| Front track : | 1628 mm | 64.1 in |
| Rear (Back) track : | 1628 mm | 64.1 in |
| Ride height(clearance) : | 165 mm | 6.5 in |
| Front overhang : | 894 mm |
| Rear overhang : | 996 mm |
| Maximum amount of Luggage (trunk) : | 4525 l |
| Max weight : | 3000 kg | 6614 lbs |
| Kerb Weight : | 2274 kg | 5013 lbs |
| Steering type : | Steering rack and pinion |
| Power steering : | Hydraulic Steering |
| Max. roof load : | 100 kg |
| Minimum turning circle (turning diameter) : | 11.9 m |
| Permitted trailer load with brakes (12%) : | 2500 kg |
| Permitted trailer load without brakes : | 750 kg |
| Permitted towbar download : | 100 kg |
Tyres / Wheels
|
|
| Tire size : | 215/65 R16 |
| Wheel rims size : | 6.5J x 16 |
| Compare this car with other cars | |
Back to Volkswagen Multivan generations
Reviews score
★
0.0
/0 reviews
Appearance
0.0
Comfort
0.0
Performance
0.0
Durability
0.0
Maintenance cost
0.0
Appearance
0
Comment (not required)
Comfort
0
Comment (not required)
Performance
0
Comment (not required)
Durability
0
Comment(not required) - common problems
Maintenance cost
0
Comment (not required)
Additional comment(not required)
Drivers photos

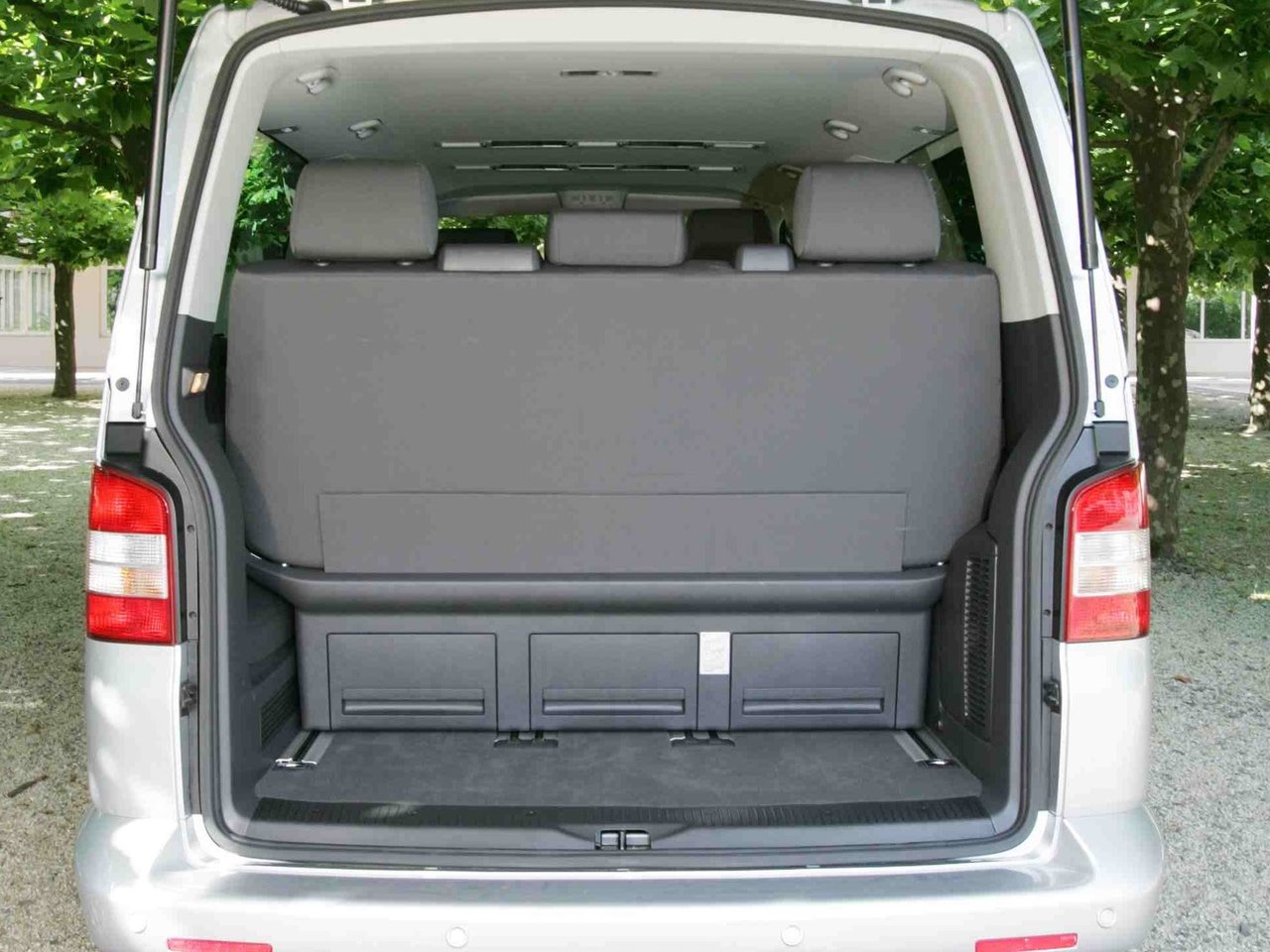

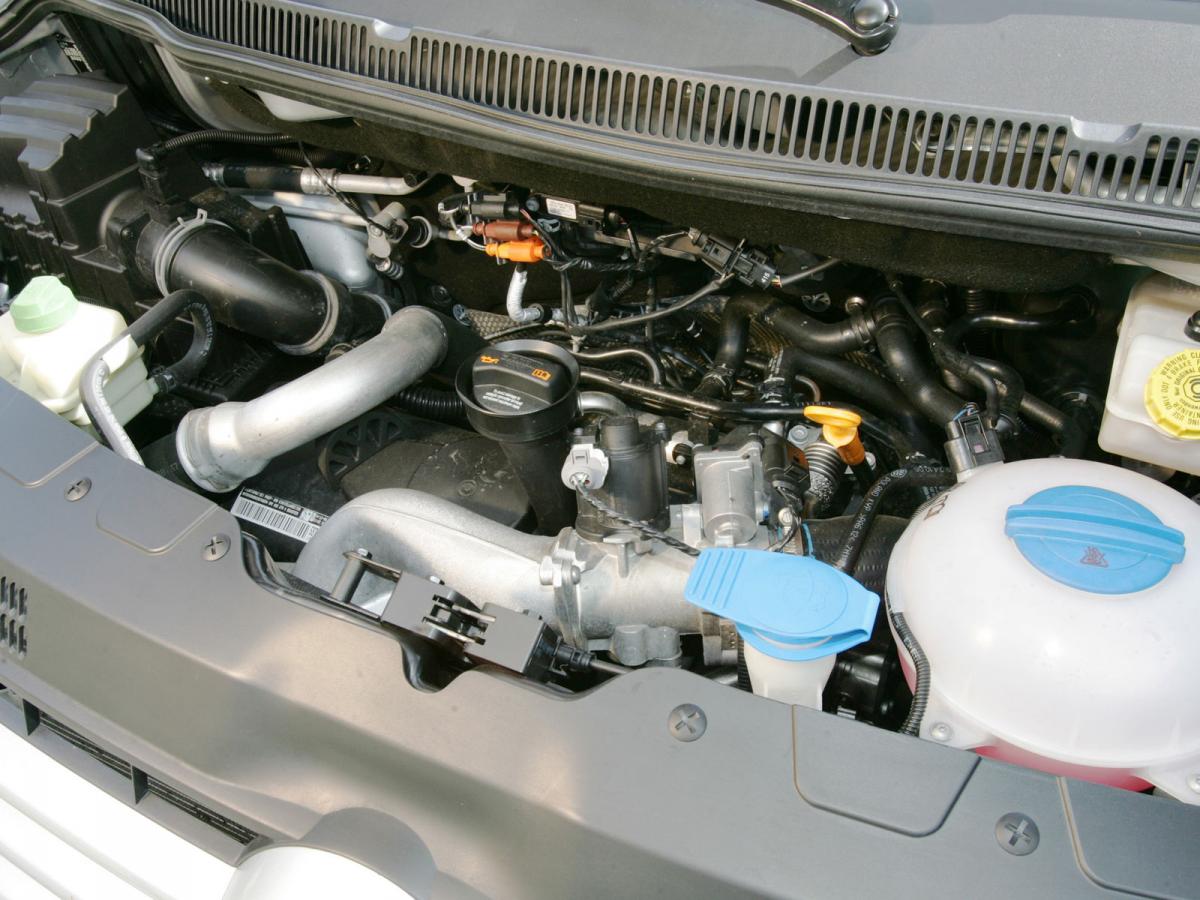

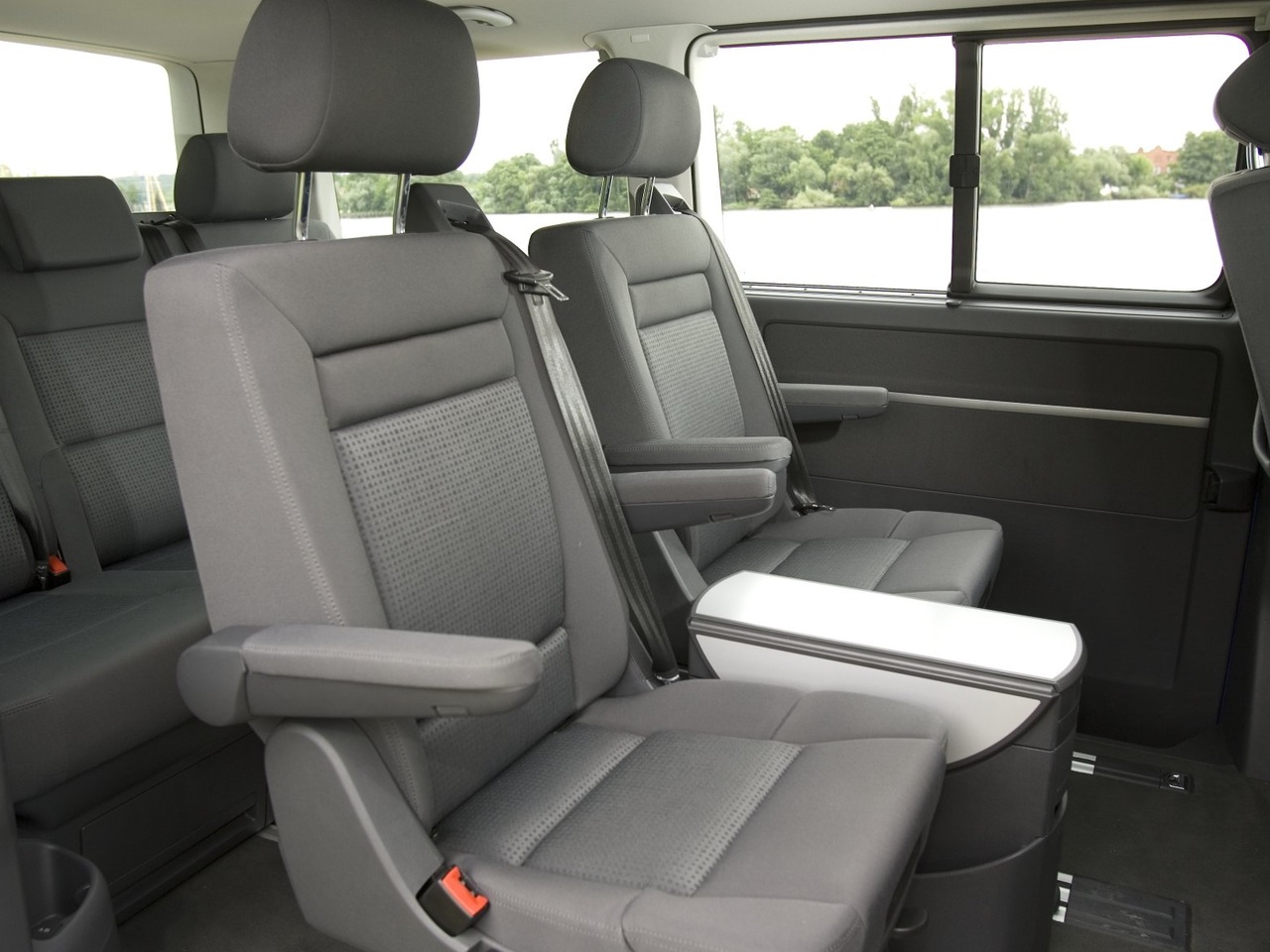

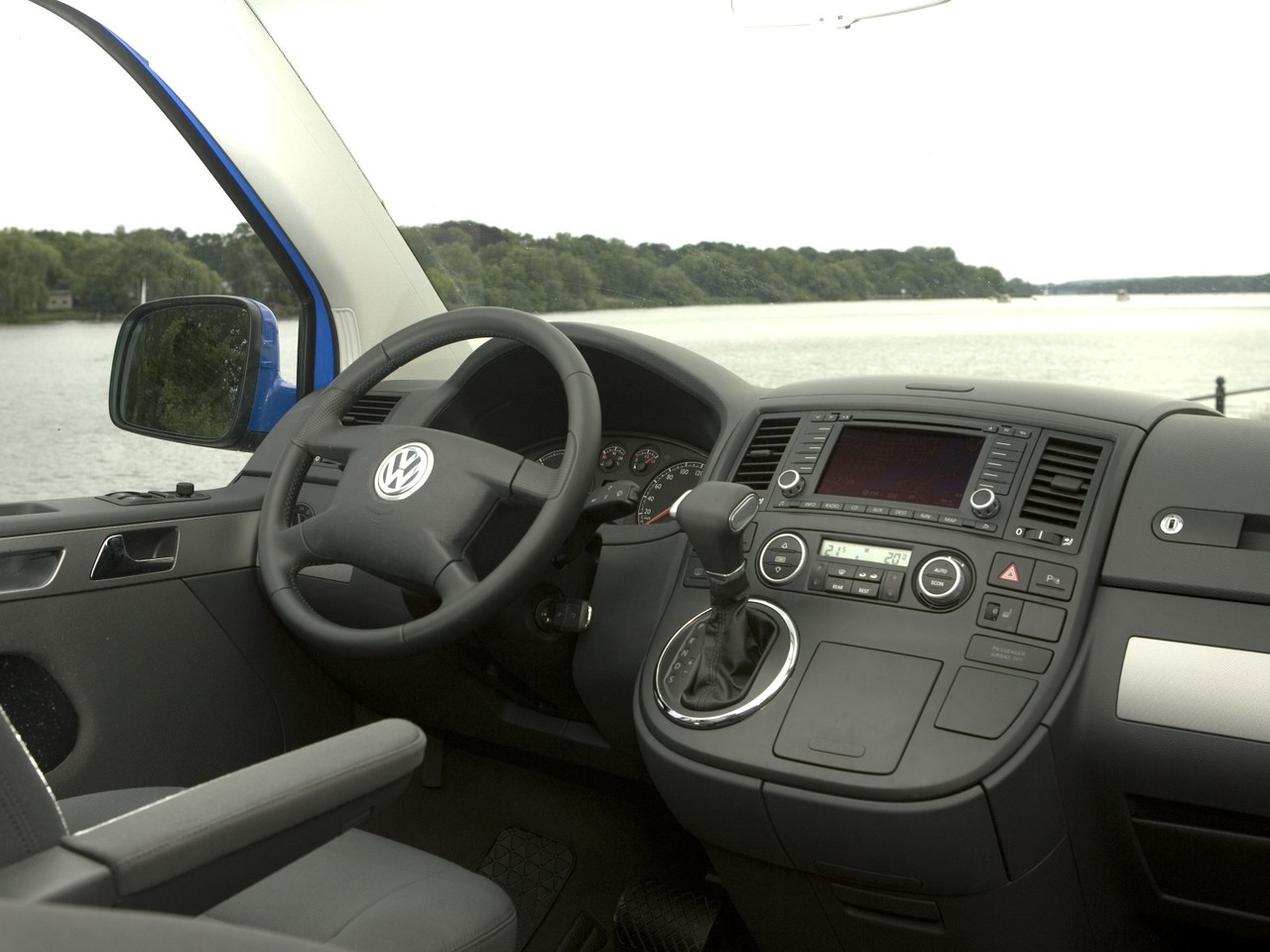

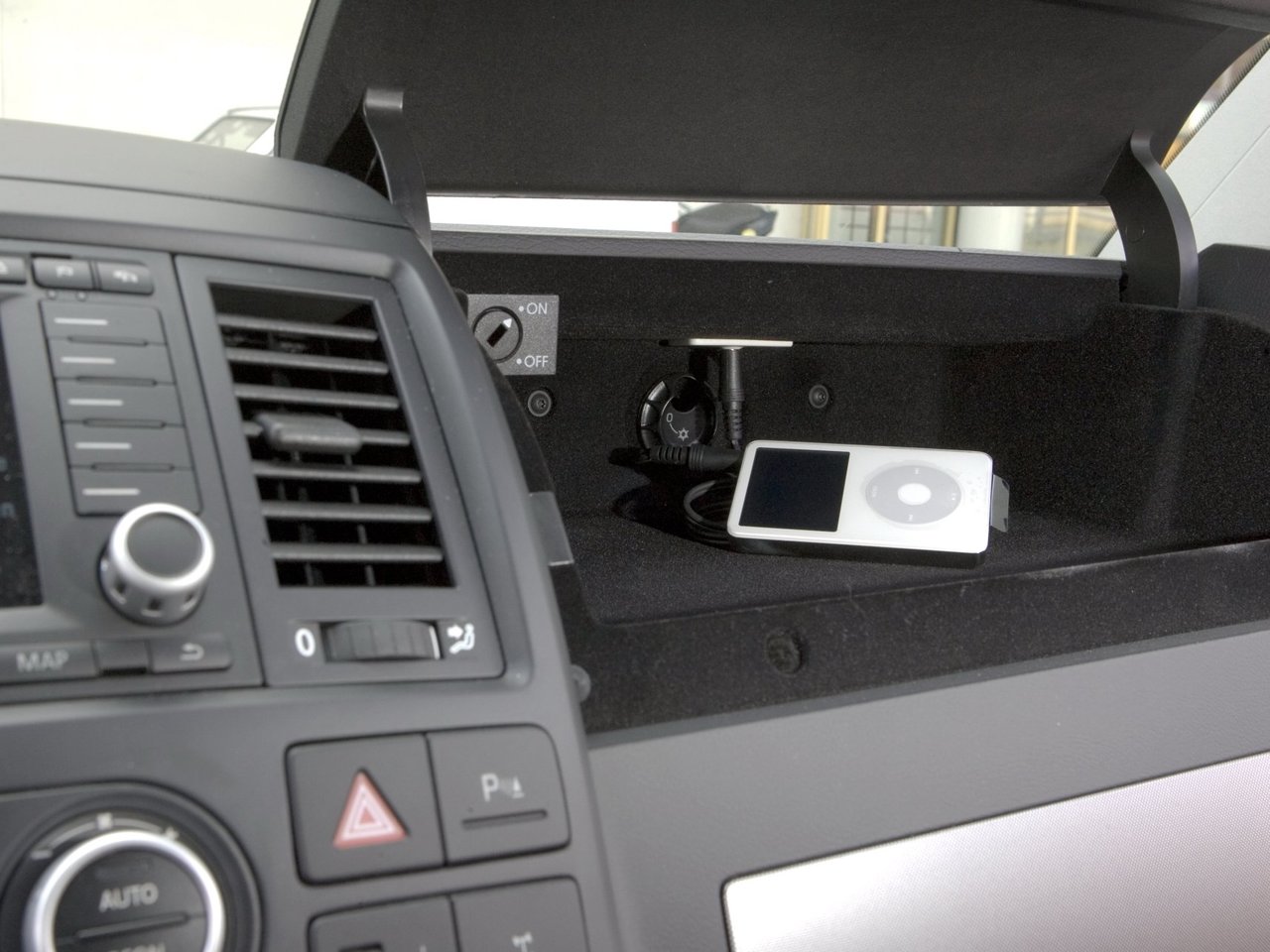

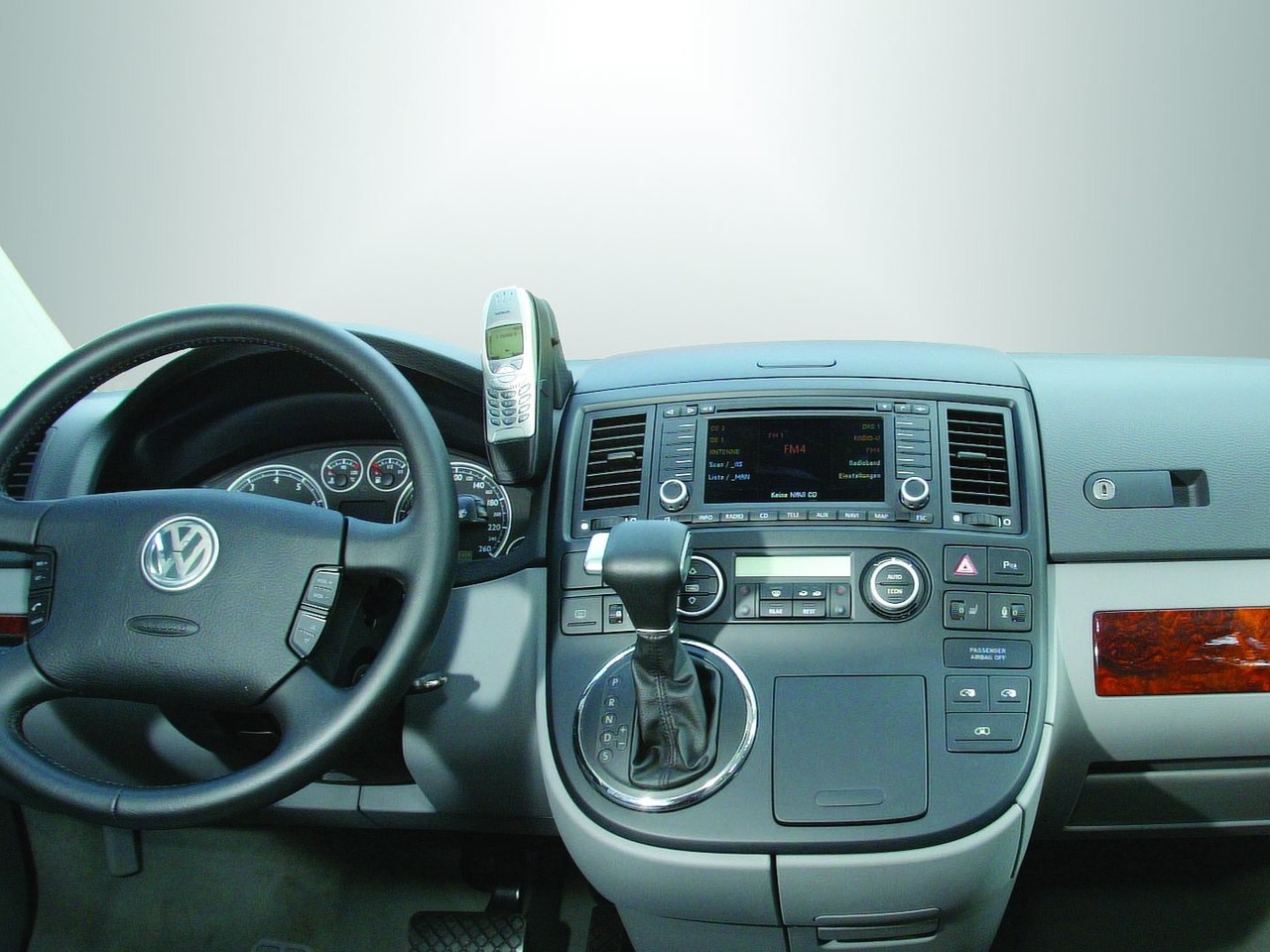

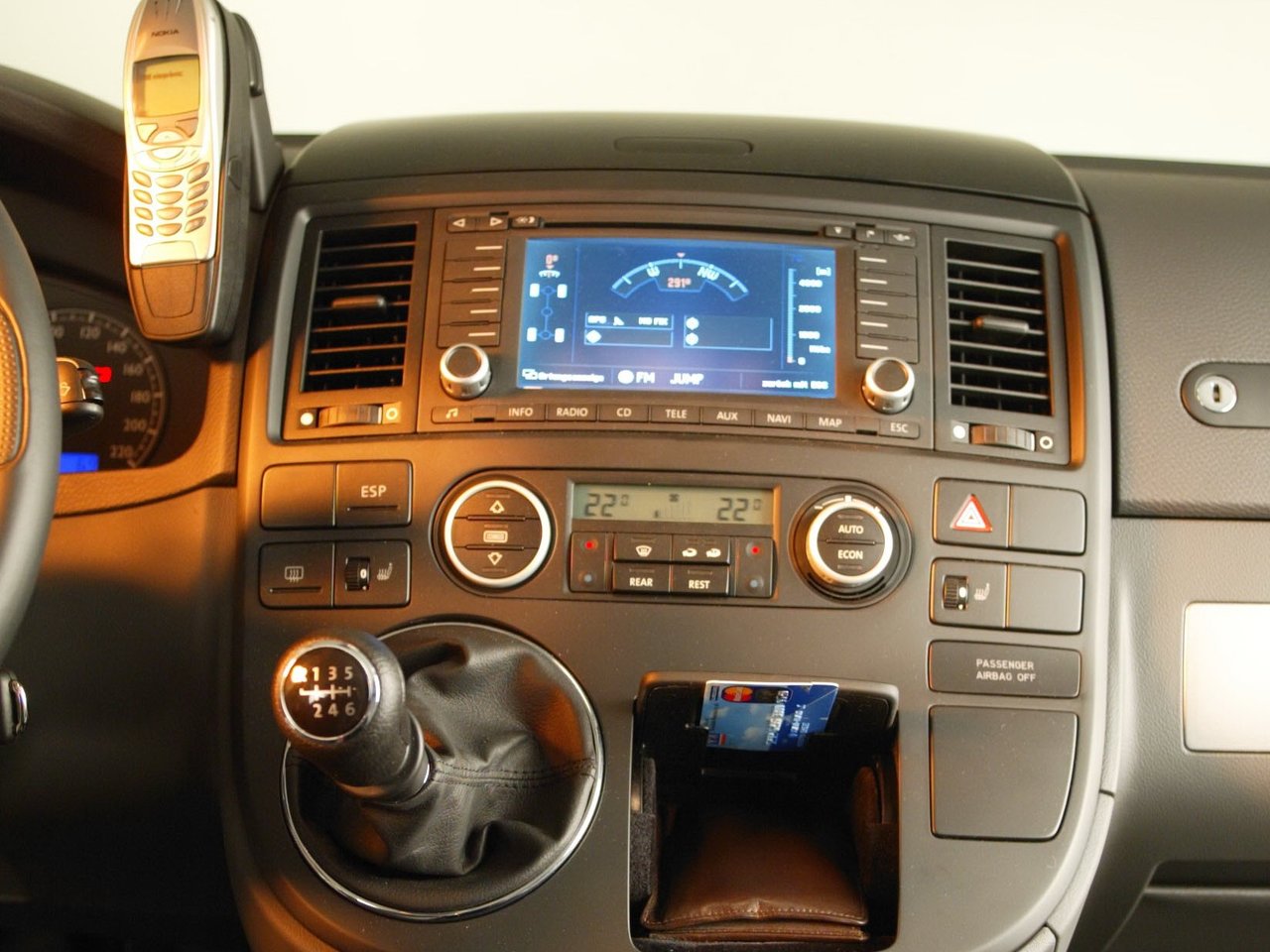

Volkswagen Multivan (T5) 2.5 TDI (130 Hp) Photo gallery
