Volkswagen Tiguan II 2.0 TDI (150 Hp) SCR technical specifications and fuel economy
Volkswagen Tiguan II 2.0 TDI (150 Hp) SCR has a combined fuel consumption of 4.5-4.6 l/100 km urban fuel consumption of 5.4-5.5 l/100 km extra urban fuel consumption of 4.0-4.1 l/100 km Volkswagen Tiguan II 2.0 TDI (150 Hp) SCR accelerates from 0 to 100 km/h in 9.4 sec. The maximum speed is 204 km/h | 127 mph.
Volkswagen Tiguan II 2.0 TDI (150 Hp) SCR Technical information
|
|
General information
|
|
|---|---|
| Brand : | Volkswagen |
| Model : | Tiguan |
| Generation : | Tiguan II |
| Engine / modification : | 2.0 TDI (150 Hp) SCR |
| Production start : | 2019 year |
| Production end : | 2020 year |
| Coupe type : | SUV |
| Num. of Doors : | 5 |
| Num. of seats : | 5 |
Fuel economy (consumption)
|
|
| Fuel consumption / economy - urban : | 5.4-5.5 l/100 km |
| Fuel consumption / economy - extra urban : | 4.0-4.1 l/100 km |
| Fuel consumption / economy - combined : | 4.5-4.6 l/100 km |
| Fuel Type : | Diesel |
| Fuel tank volume : | 58 l | 15.3 US gallons | 12.8 UK gallons |
| AdBlue tank : | 12 l | 3.2 US gallons | 2.6 UK gallons |
| Emission standard : | Euro 6d-TEMP-EVAP-ISC |
| CO2 emissions : | 119-122 g/km |
Performance
|
|
| Power : | 150 hp | 110 kW |
| Max power in : | 3500-4000 rpm. |
| Maximum speed : | 204 km/h | 127 mph |
| Acceleration from 0 to 100 km/h : | 9.4 sec |
| Torque : | 340 Nm @ 1750-3000 rpm. |
Engine
|
|
| Engine position : | |
| Engine displacement : | 1968 cm3 |
| Fuel System : | Diesel Commonrail |
| Position of cylinders : | Inline |
| Number of cylinders : | 4 |
| Number of valves per cylinder : | 4 |
Transmission
|
|
| Wheel Drive : | Front wheel drive |
| Number of Gears (manual transmission) : | 6 |
Chassis
|
|
| Length : | 4486 mm | 176.6 in |
| Width : | 1839 mm | 72.4 in |
| Width including mirrors : | 2099 mm | 82.6 in |
| Height : | 1654 mm | 65.1 in |
| Wheelbase : | 2677 mm | 105.4 in |
| Front track : | 1579-1589 mm |
| Rear (Back) track : | 1570-1580 mm |
| Ride height(clearance) : | 191 mm | 7.5 in |
| Approach angle : | 17.4 ° |
| Departure angle : | 16.4 ° |
| Ramp angle : | 15.5 ° |
| Minimum volume of Luggage (trunk) : | 615 l |
| Maximum amount of Luggage (trunk) : | 1655 l |
| Front suspension : | Independent multi-link |
| Rear suspension : | Independent, spring |
| Max weight : | 2210 kg | 4872 lbs |
| Front brakes : | Ventilated discs |
| Rear brakes : | Disc |
| Kerb Weight : | 1525 kg | 3362 lbs |
| Steering type : | Steering rack and pinion |
| Power steering : | Electric Steering |
| Max. roof load : | 75 kg |
| Minimum turning circle (turning diameter) : | 11.5 m |
| Permitted trailer load with brakes (12%) : | 2000 kg |
| Permitted trailer load without brakes : | 750 kg |
| Permitted towbar download : | 100 kg |
Tyres / Wheels
|
|
| Tire size : | 215/65 R17; 235/55 R18; 235/50 R19; 255/45 R19; 235/45 R20; 255/40 R20 |
| Wheel rims size : | 7J x 17; 7J x 18; 7J x 19; 8J x 20 |
| Compare this car with other cars | |
Back to Volkswagen Tiguan generations
Reviews score
★
0.0
/0 reviews
Appearance
0.0
Comfort
0.0
Performance
0.0
Durability
0.0
Maintenance cost
0.0
Appearance
0
Comment (not required)
Comfort
0
Comment (not required)
Performance
0
Comment (not required)
Durability
0
Comment(not required) - common problems
Maintenance cost
0
Comment (not required)
Additional comment(not required)
Drivers photos

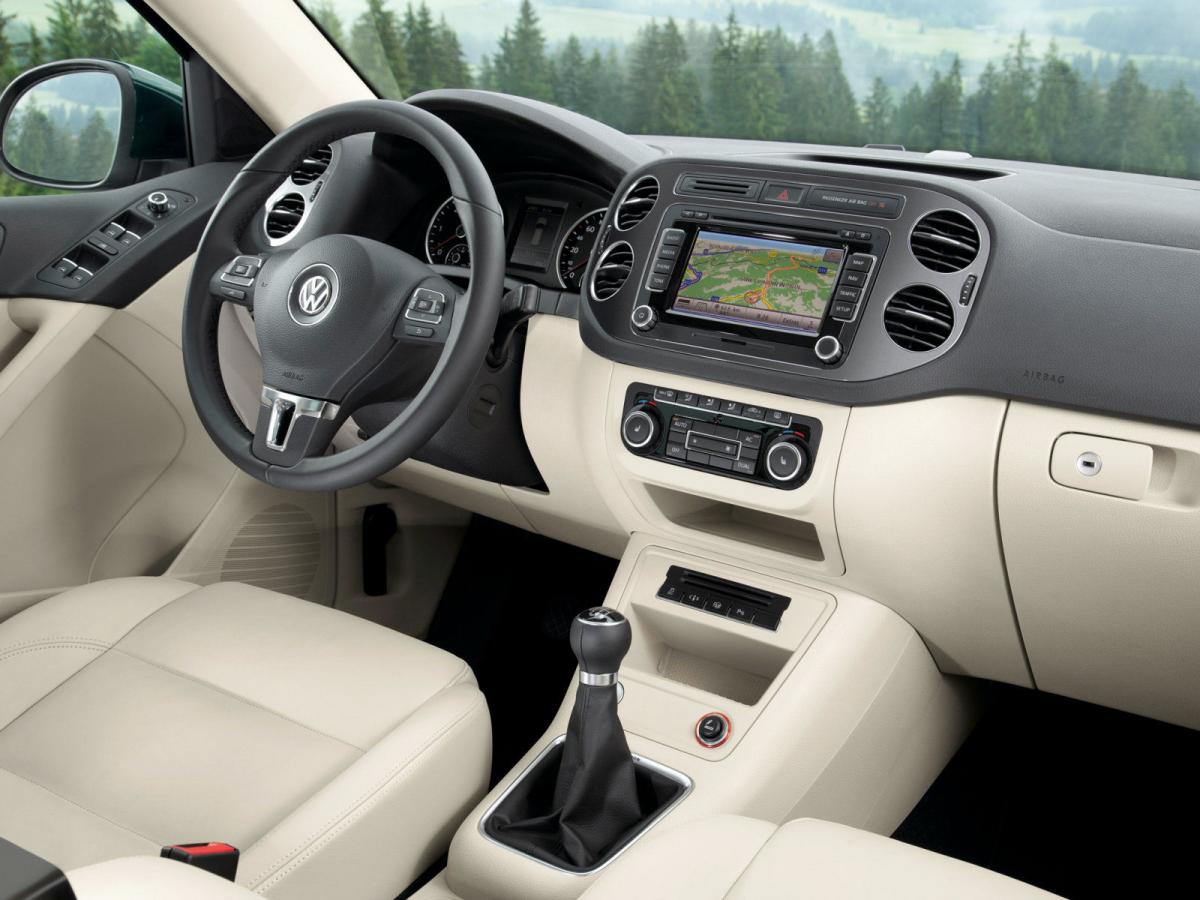

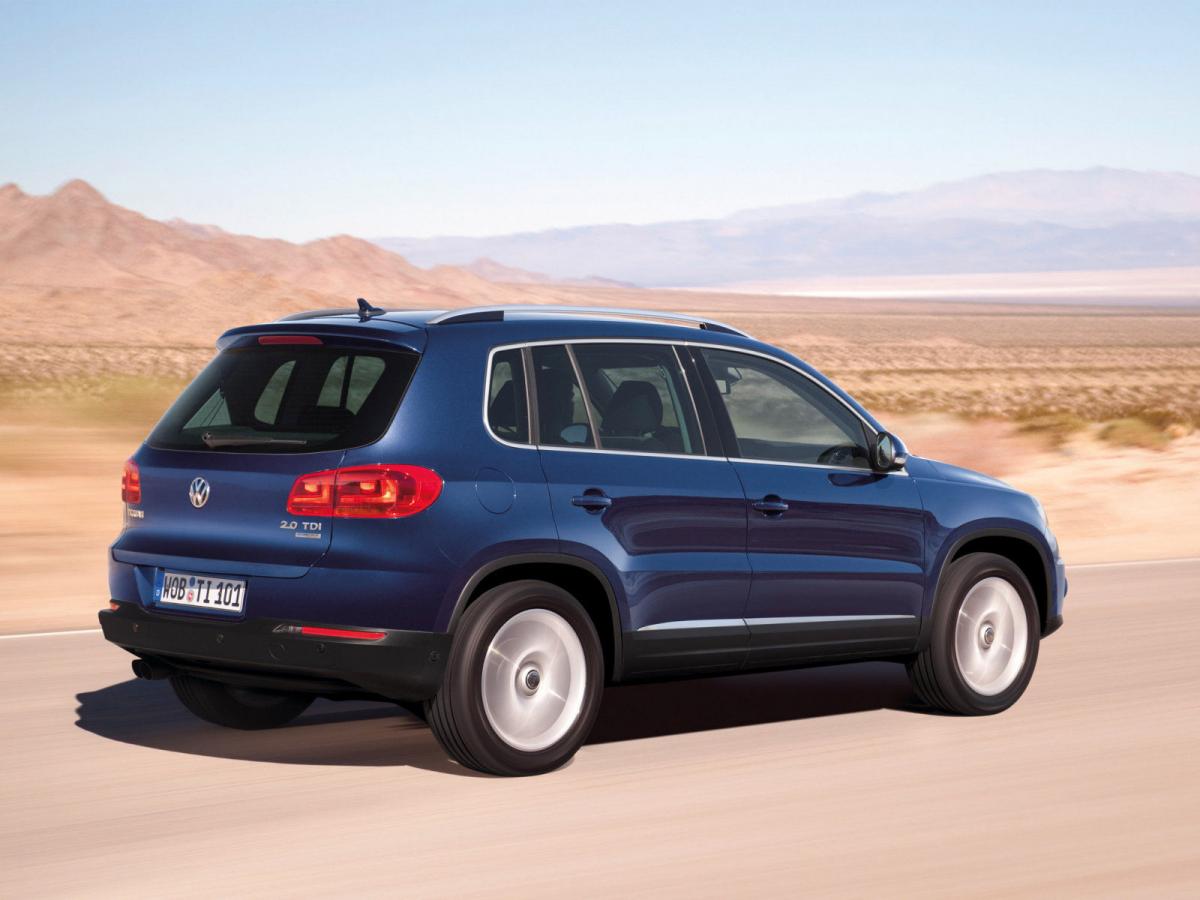

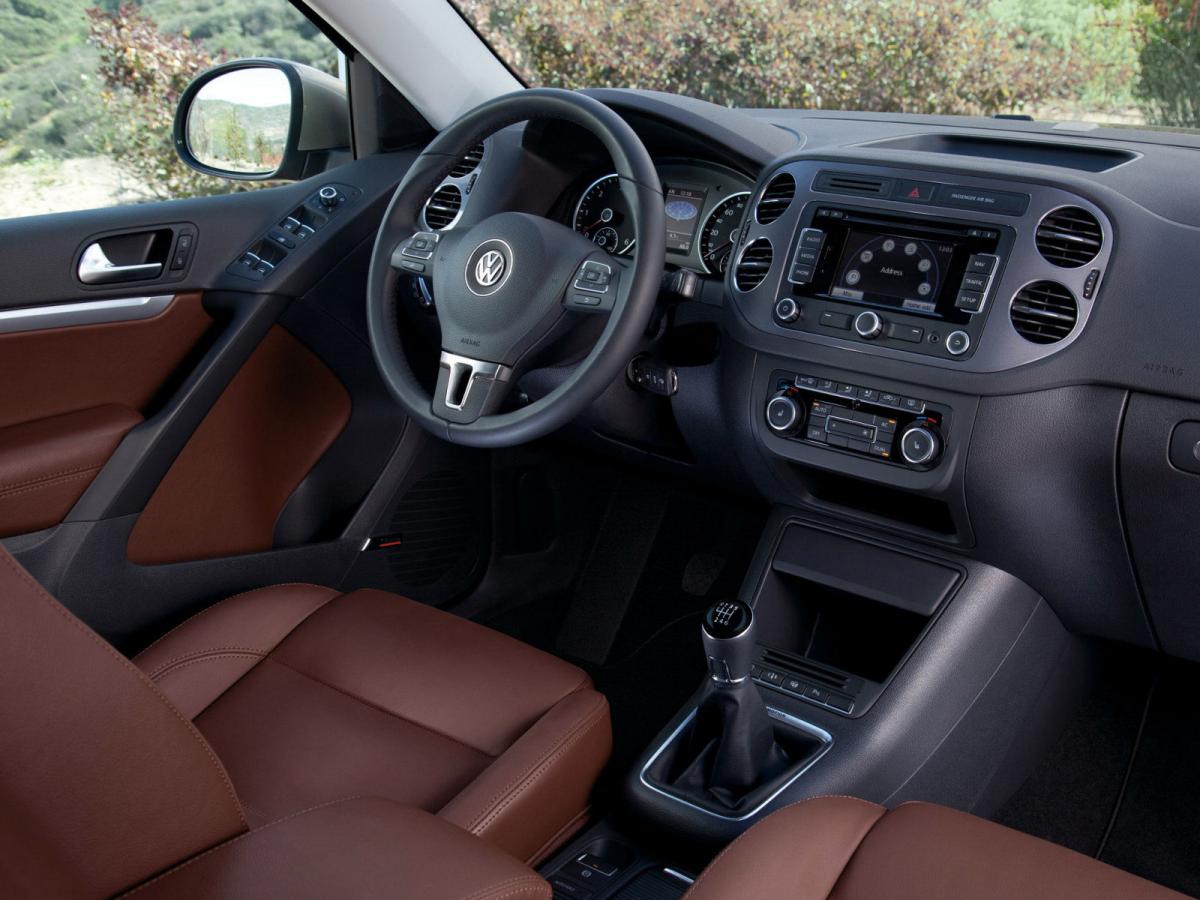

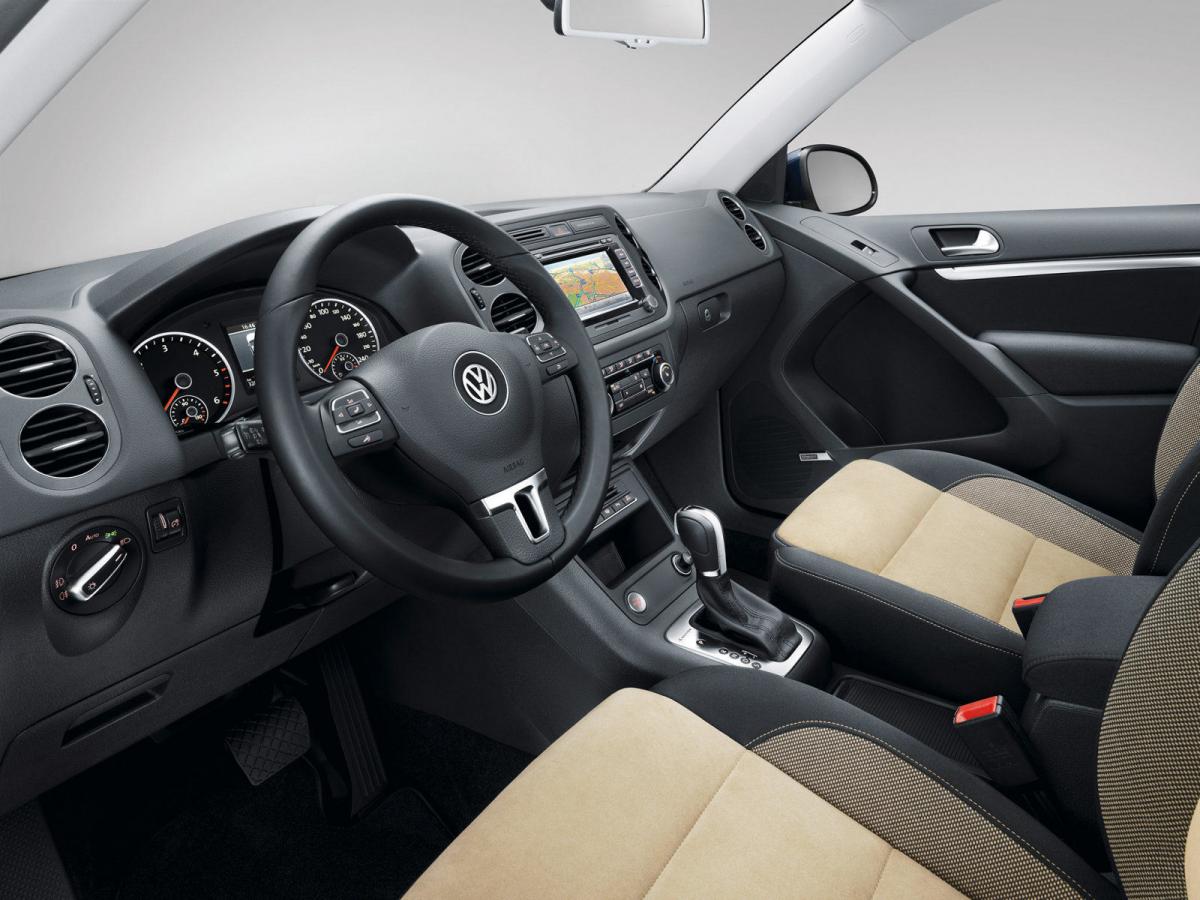

Volkswagen Tiguan II 2.0 TDI (150 Hp) SCR Photo gallery
